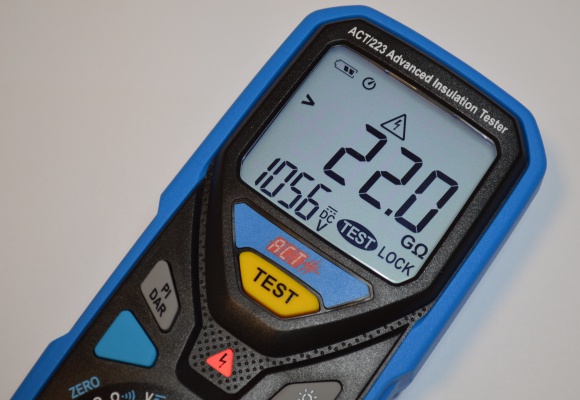

The ACT/223 Advanced Insulation Tester streamlines installation and maintenance by combining versatile measurement functions into one powerful tool.

The ACT/223 features five insulation test voltages up to 1000V, measuring insulation resistance up to 20 GΩ. It includes a 200 mA low-ohms earth-bond continuity test, alongside Polarisation Index (PI) and Dielectric Absorption Ratio (DAR) measurements to accurately assess insulation quality and its stability over time.

Built for the demanding conditions of UK fire alarm industry, the rugged ACT/223 comes complete with a protective rubber holster to help withstand accidental drops on-site. Its large, backlit LCD screen ensures crystal-clear readability inside dark ceiling voids or poorly lit rooms. An automatic 10-minute power-off feature prevents unexpected battery drain. Every unit comes fully equipped with a durable nylon carrying case, a premium test lead set with detatchable crock clips, and 4x Alkaline AA batteries ready for immediate deployment.

Additional functions include AC/DC voltage measurement up to 600V, resistance measurement up to 600kΩ, and a continuity test with audible buzzer.

Key Features

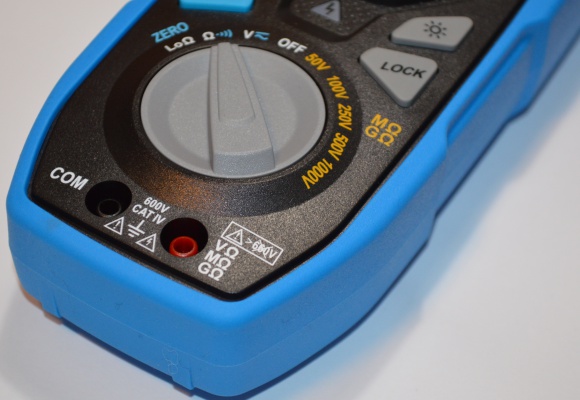

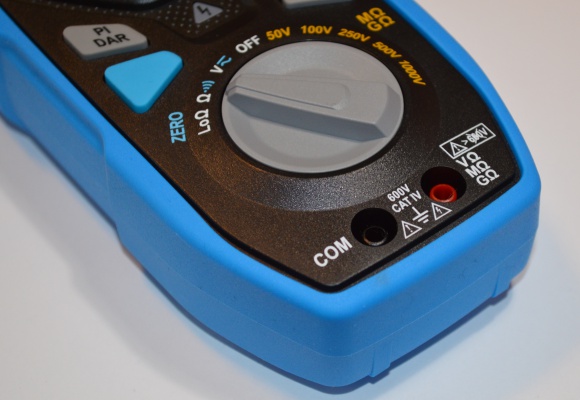

• 5 insulation test voltages 50 / 100 / 250 / 500 / 1000V
• Insulation resistance measurement up to 20GΩ

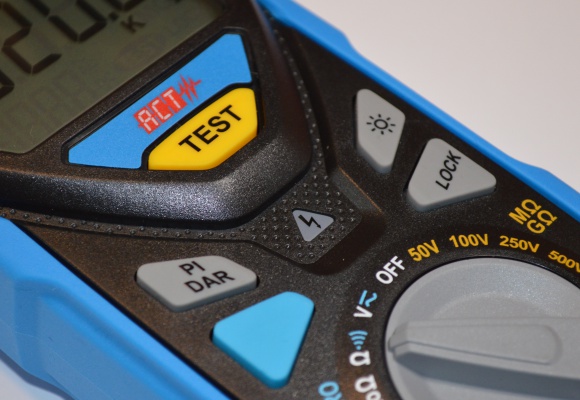

• Polarisation Index (PI) and Dielectric Absorption Ratio (DAR) measurements for assessing insulation quality over time
• Lo-ohms earth bond continuity test (200mA) for accurate ground connection verification
• Automatic live circuit detection prevents testing on live circuits for user safety

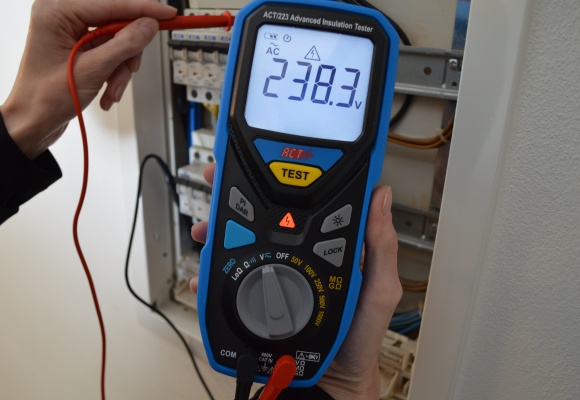

• AC and DC voltage measurement up to 600V
• Resistance measurement up to 600kΩ
• Continuity testing with audible buzzer for quick identification of circuit integrity

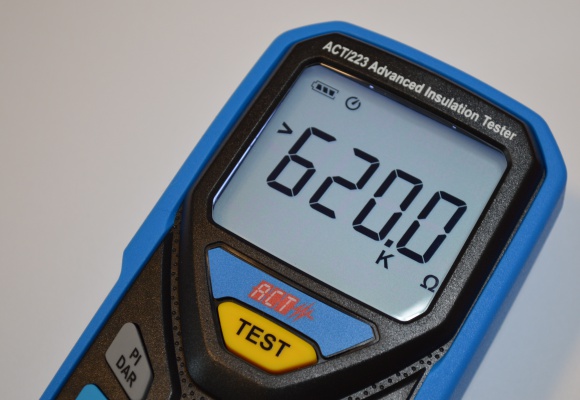

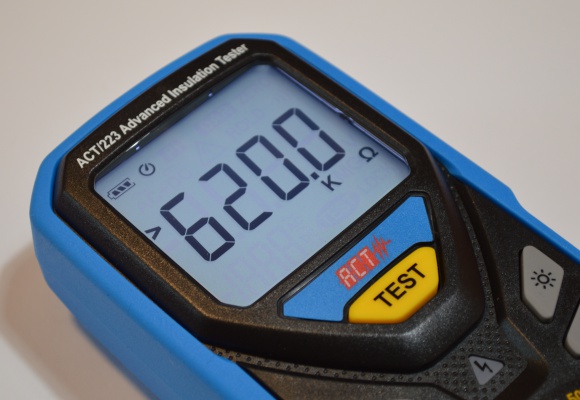

• Large backlit LCD display for easy reading in all lighting conditions
• Auto power-off function (after 10 minutes) to extend battery life
• Rugged construction with protective rubber holster for durability

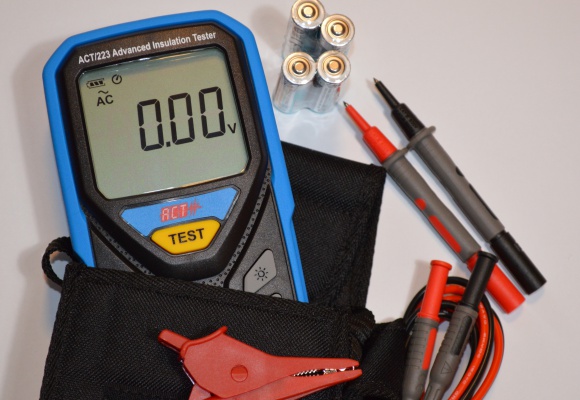

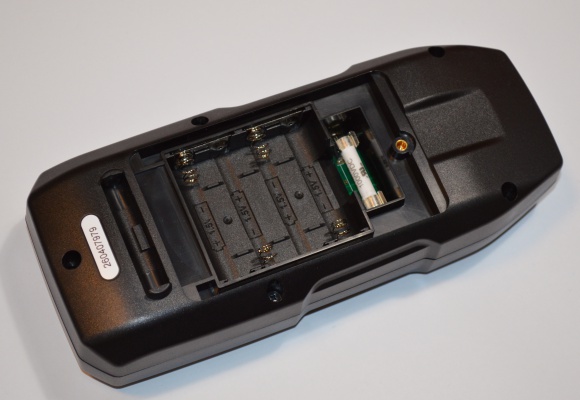

• Supplied with carry case, leads, crock clips and 4x AA Alkaline batteries.
• EN 61010 600V CAT IV

AC/DC Voltage Range: 60.00V / 600.0V / 600V Resolution: 0.01V / 0.1V / 1V Accuracy: (AC: 45 - 500Hz): +/- 2% of reading + 5 digits Resistance Range: 600.0Ω / 6.000KΩ / 60.00KΩ / 600.0KΩ Resolution - 0.1Ω / 0.001KΩ / 0.01KΩ / 0.1KΩ Accuracy: +/- 2% of reading + 5 digits Continuity Range: 600.0Ω Resolution: 0.1Ω Beeper: ≤7Ω +/- 1Ω LoΩ Range: 6.00Ω / 60.0Ω Resolution: 0.01Ω / 0.1Ω Accuracy: +/- 2% of reading + 3 digits General Specifications Auto power off: Approx. 10 minutes Approvals: EN 61010 600V CAT IV / 1000V CAT III Electromagnetic compatibility: EN 61326-1 Dimensions/weight: 206(L) x 90(W) x 51(H) mm / 510g (with holster & alkaline batteries)

• ACT 223 SPECIFICATIONS.pdf
