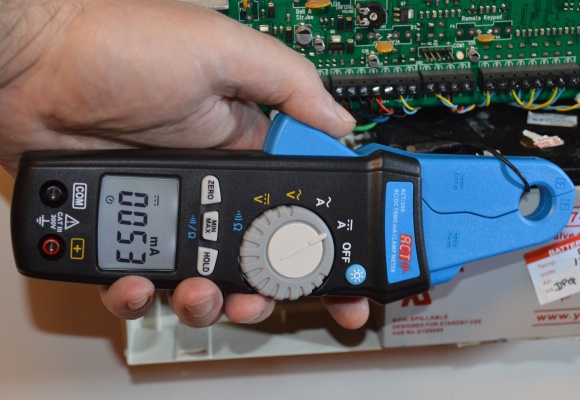

As well as being ideal for both comissioning and fault finding, the ACT/260 is also perfect for safe, quick and accurate measuring of the quiescent load and full-alarm load without disconnecting the battery from the alarm panel.

Highly accurate and stable sensor measures both AC and DC with a resolution of 1mA.

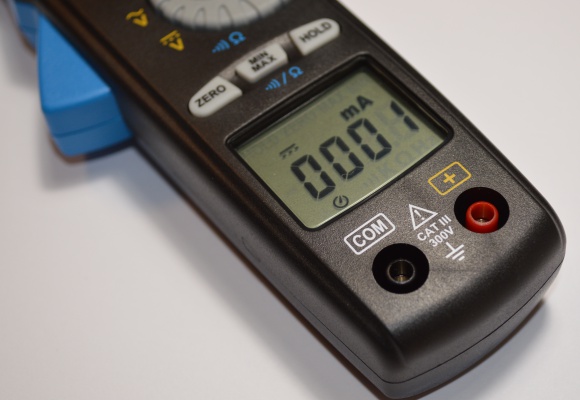

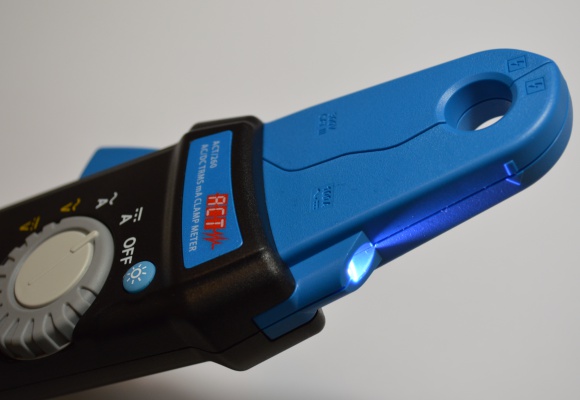

Clear backlit display and built-in worklight make it easy to use even in poor light conditions.

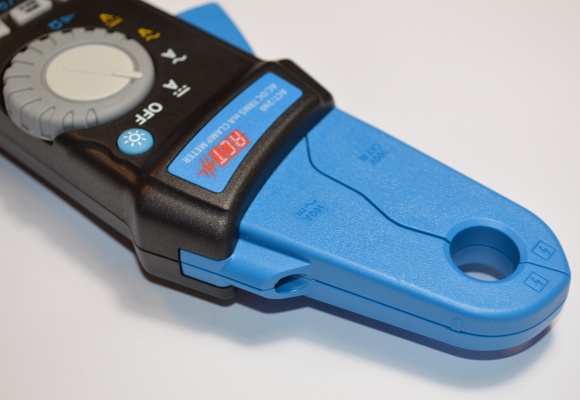

The advanced jaw design minimises the influence of conductor position and shields against external fields for more accurate and consistent results.

Additionally ideal for troubleshooting of RCD nuisance tripping, measurement of neutral currents and measurement of leakage current.



Display: Maximum reading 5000
Sampling Rate: 2 times/sec

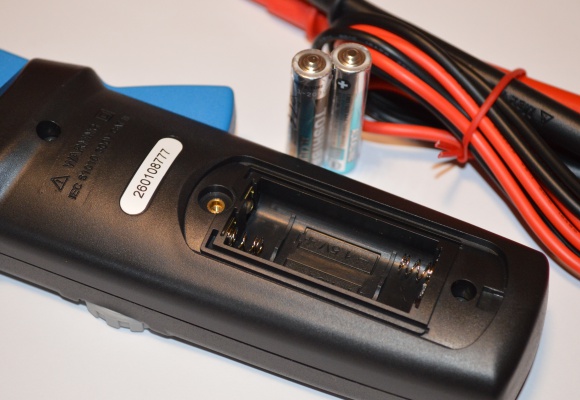

Battery: 1.5V size AAA battery x 2
Dimensions: 220x72x35 mm
Weight: 210g
Maximum Jaw Opening:  13 mm

SPECIFICATIONS Function Range Resolution Accuracy ACA 5000mA/50A/100A 1mA/0.01A/0.01A ? 1.8%rdg ? 5dgts DCA 5000mA/50A/100A 1mA/0.01A/0.01A ? 1.8%rdg ? 5dgts ACV 50V/300V 0.01V/0.1V ? 1.2%rdg ? 5dgts DCV 50V/300V 0.01V/0.1V ? 1%rdg ? 2dgts Ohms 500Ω/5KΩ/50KΩ/500KΩ 0.1Ω/1Ω/10Ω/100Ω ?1%rdg ? 2dgts ?))) Active Sound Level < 120Ω Display: 4 digital Liquid display, Maximum reading 5000 Sampling Rate: 2 times/sec Battery: 1.5V size AAA battery x 2 Dimensions: 220x72x35 mm Weight: 210g Maximum Jaw Opening: ? 13 mm

• 260 Manual.pdf
